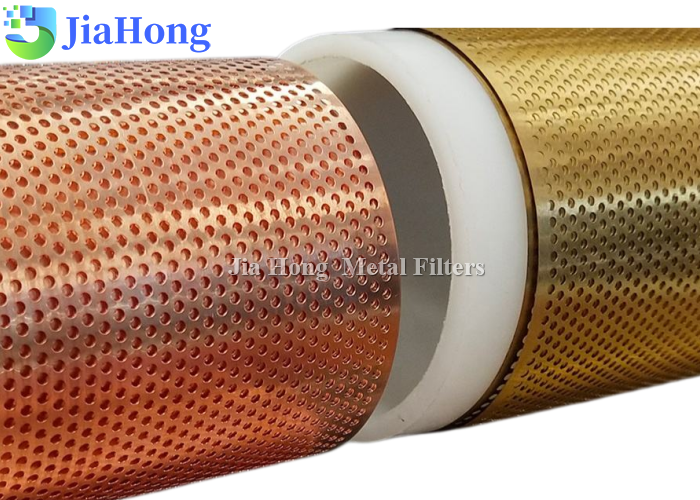

Copper Perforated Metal Sheet
Copper Perforated Sheet is a high-performance functional material made from pure copper or copper alloy sheets through precision punching. It features uniform holes of various shapes, combining copper’s inherent advantages with the functionality of perforated structures, widely used in filtration, ventilation, decoration and shielding applications. It is available in various hole patterns and sizes to meet diverse application needs.
Manufacturing Process:
Copper Sheet Cutting → Precision Punching (CNC punching machine for uniform hole size) → Deburring (removing burrs to ensure smooth surface) → Surface Treatment → Trimming → Quality Inspection → Cutting/Rolling (customized size for transportation and application).
Specification Parameters of copper perforated mesh:
Parameter | Typical Range |
Material Grade | Pure Copper (C11000, 99.9% Cu); Copper Alloy (Brass C26000, Bronze optional) |
Sheet Thickness | 0.1~10.0 mm; Tolerance: ±0.03 mm (thin sheets) / ±0.10 mm (thick sheets) |
Hole Size | 0.5~100 mm; Customizable for special requirements |

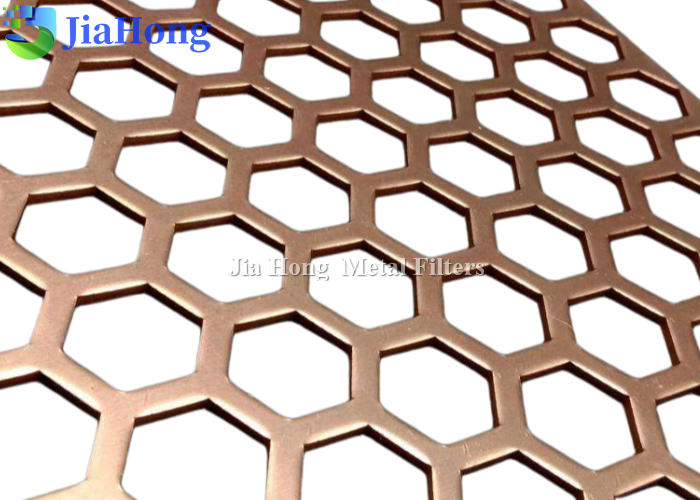

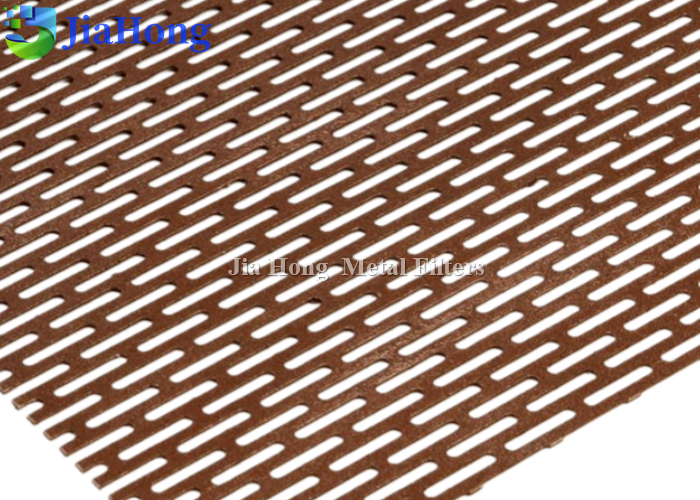

Hole Shapes | Round (standard), Square, Oval, Slotted(Oblong); Hexagonal Holes; |
Hole Patterns (Arrangement) | A. Staggered Pattern (60° Triangular Center) |
Open Area | 10%~70% (adjustable by hole size and spacing); Standard: 30%~50% |
Sheet Width | 200~1220 mm (standard); Max 2000 mm |
Tensile Strength | ≥200 MPa (C11000); ≥300 MPa (copper alloy); Varies with thickness |
Key Properties of cu punched mesh:
l Excellent Electrical & Thermal Conductivity: Suitable for grounding, heat dissipation and EMI shielding.
l Uniform Holes: CNC punching ensures stable ventilation/filtration performance.
l Good Ductility: Easy to cut, bend, weld and form without cracking.
l Corrosion Resistance: Good in dry/neutral environments; surface treatment for harsh conditio
l Lightweight & Durable: High strength, long service life and low maintenance.
l Aesthetic & Functional: Various hole patterns for decoration and functionality.
Typical Applications of copper perforated mesh
- Filtration & Separation: Filter screens for chemical, water treatment and food industries (custom hole sizes).
- Ventilation & Heat Dissipation: Electronic enclosures, power cabinets and heat exchangers.
- Architectural Decoration: Building facades, ceilings, partitions and railings.
- EMI/RFI Shielding: Electronic equipment and communication cabinets.
- Electroplating & Battery: Electroplating racks and battery components (good conductivity).
- Automotive & Aerospace: Automotive exhaust and aircraft ventilation components.
- Others: Sound insulation, dust prevention and precious metal recovery.
