High Strength Continuous Slot Filter Tube for Industrial Filtration

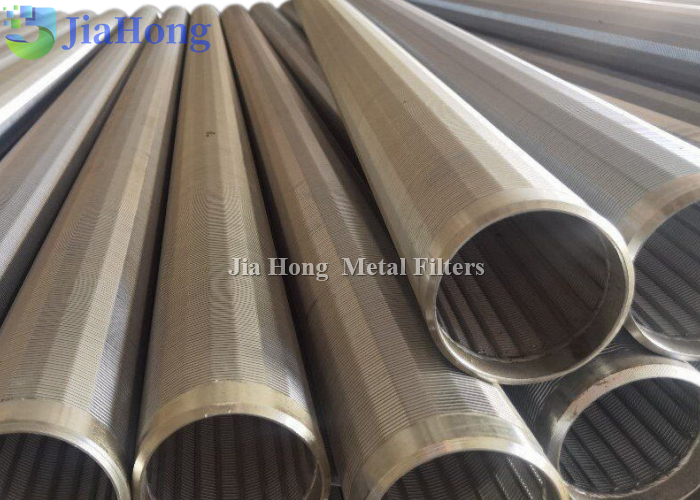

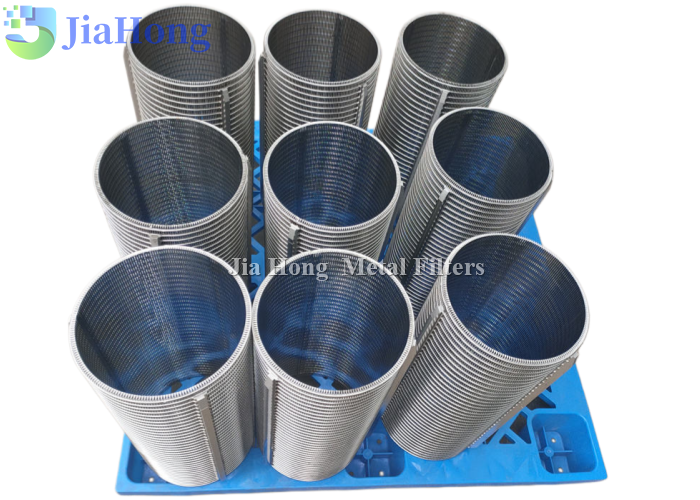

Stainless Steel Johnson Slotted Wedge Wire Screen Tubes are manufactured by welding V-shaped profile wires onto support rods to create a continuous slot opening structure.

The unique wedge wire design provides:

-High open area

-Excellent flow performance

-Low pressure drop

-Anti-clogging capability

-High mechanical strength

Suitable for water filtration, well screens, sand control, industrial separation and liquid-solid filtration applications.

Custom slot size, diameter, length and material are available according to customer requirements.

Key Advantages

Continuous Slot Design

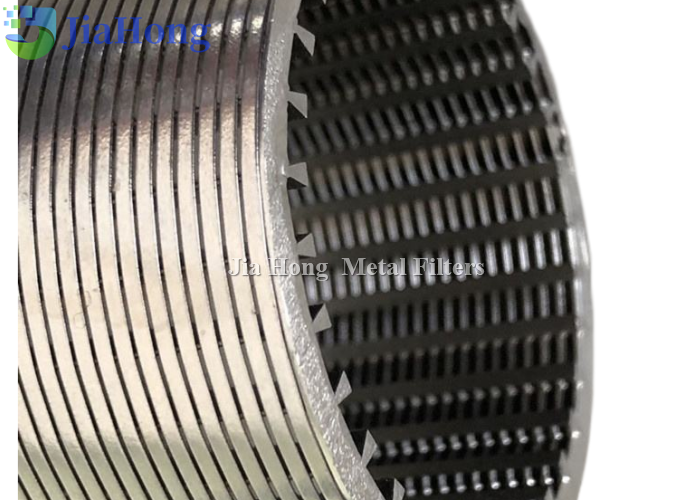

The V-shaped wire profile creates a smooth inner surface that helps prevent particles from becoming trapped.

Benefits:

✔ Reduced clogging
✔ Easy cleaning
✔ Stable filtration performance

High Open Area

Compared with traditional perforated tubes, wedge wire screens provide a higher open area for improved flow efficiency.

Strong & Durable Structure

Manufactured with stainless steel profile wire and support rods for excellent mechanical strength.

Custom Manufacturing

Available according to:

-Diameter

-Slot opening

-Length

-Wire profile

-Support rod design

Technical Specifications

Common Slot Size Selection

Material Options

Applications

Water Treatment

-Sand filters

-Water intake screens

-Pre-filtration systems

Well Screen & Groundwater

-Water wells

-Sand control

-Groundwater extraction

Industrial Filtration

Applications:

-Oil filtration

-Chemical filtration

-Process water filtration

-Solid-liquid separation

Food & Beverage

-Liquid separation

-Sanitary filtration systems

Mining & Mineral Processing

-Dewatering

-Screening

-Particle separation

Why Choose Wedge Wire Screen Tube?

Compared with perforated tubes and wire mesh tubes:
