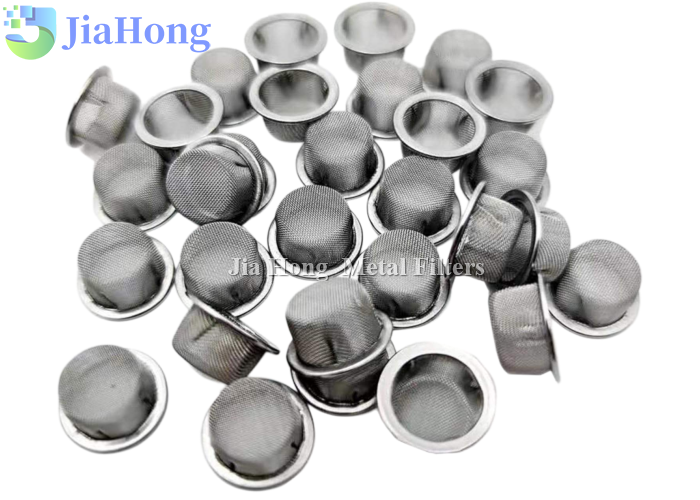

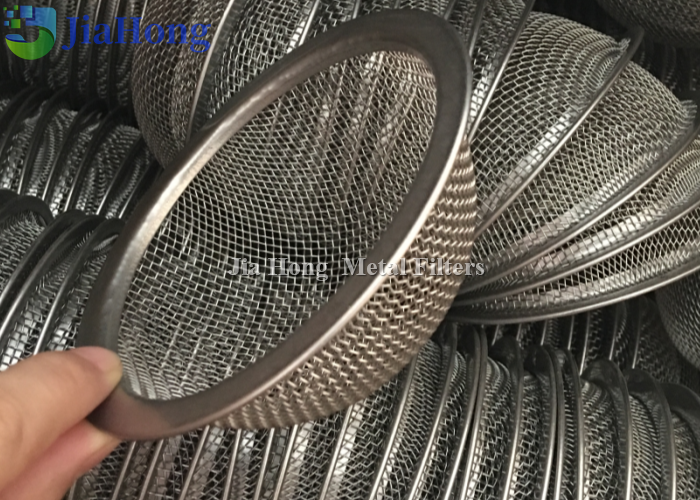

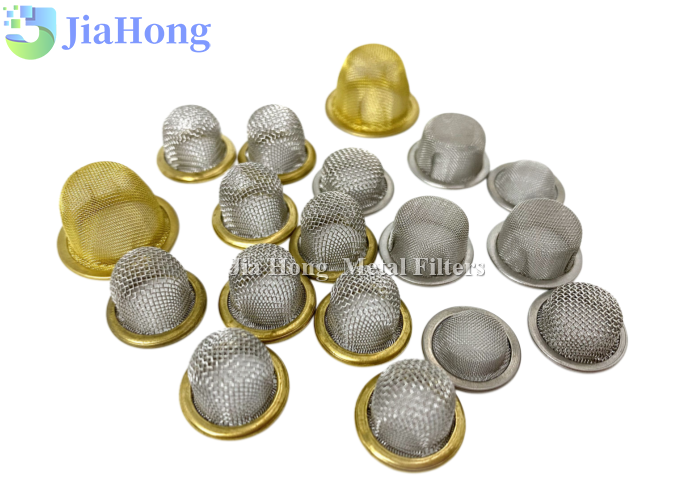

Stainless Steel Bowl-Shaped Wire Mesh Filter Screen
Deep-Formed Stainless Steel Mesh Filter for Industrial Filtration
Stainless Steel Bowl-Shaped Wire Mesh Filter Screens are deep-formed filter components manufactured from stainless steel woven mesh.
The bowl structure provides a larger filtration area, higher dirt holding capacity and better mechanical strength compared with flat filter screens.
Suitable for liquid filtration, particle separation, screening and equipment protection applications.
Custom sizes, mesh specifications and edge designs are available according to drawings or samples.
Key Advantages
✔ Bowl-Shaped Structure
Provides increased filtration surface area and improved particle holding capacity.
✔ Stainless Steel Construction
High corrosion resistance, strength and reusable performance.
✔ Custom Manufacturing
Diameter, depth, mesh, wire diameter and edge treatment can be customized.
✔ Easy Cleaning
Suitable for washing, back flushing and repeated use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Bowl-Shaped Wire Mesh Filter Screen |
| Material | SS304 / SS304L / SS316 / SS316L |
| Shape | Bowl / Cup / Basket Shape |
| Diameter | 20–500 mm |
| Depth / Height | 5–200 mm |
| Mesh Count | 2–635 mesh |
| Wire Diameter | 0.025–2.0 mm |
| Mesh Opening | 25 μm–10 mm |
| Mesh Type | Plain Weave / Twill Weave / Dutch Weave |
| Layers | Single Layer / Multilayer |
| Edge Type | Rolled Edge / Reinforced Edge / Frame Edge |
| Surface Finish | Standard / Polished / Electropolished |
| Manufacturing | OEM Customized |
Material Selection
| Material | Features | Applications |
|---|---|---|
| SS304 | General corrosion resistance | Water, oil, industrial filtration |
| SS316 | Higher corrosion resistance | Chemical and industrial applications |
| SS316L | High cleanliness and corrosion resistance | Food, pharmaceutical, demanding environments |
Mesh Options
| Mesh Type | Characteristics |
|---|---|
| Plain Weave | Standard filtration, stable opening |
| Twill Weave | Higher strength, finer filtration |
| Dutch Weave | High strength, precision filtration |
| Multilayer Mesh | Higher filtration performance and durability |
Common Size Reference
| Application | Diameter | Depth | Mesh Range |
|---|---|---|---|
| Coarse Filtration | 50–300 mm | 20–100 mm | 10–40 mesh |
| Liquid Filtration | 30–200 mm | 10–80 mm | 40–200 mesh |
| Fine Filtration | 20–150 mm | 5–50 mm | 200–635 mesh |
| Custom Equipment Filter | Customized | Customized | Customized |
Applications
Liquid Filtration
Used for:
-Oil filtration
-Water filtration
-Chemical liquid filtration
-Hydraulic filtration
Particle Screening
Used for:
-Powder screening
-Granule separation
-Solid-liquid separation
-Material classification
Industrial Equipment Protection
Used as:
-Pump inlet filter
-Machine protection filter
-Equipment pre-filter
-Strainer component
Plastic & Polymer Processing
Used for:
-Plastic extrusion filtration
-Polymer melt filtration
-Recycling filtration
Food & Pharmaceutical Industry
Used for:
-Food ingredient filtration
-Beverage filtration
-Sanitary filtration systems
Custom Manufacturing Capability
We can manufacture according to your requirements:
-Diameter
-Depth
-Mesh count
-Wire diameter
-Material
-Edge structure
-Support ring
-Number of layers
Available from:
Drawing / Sample / Specification
Why Choose Our Bowl-Shaped Filter Screen?
Unlike flat wire mesh discs, the bowl-shaped design provides:
✔ Larger filtration area
✔ Higher dirt holding capacity
✔ Better structural stability
✔ Longer service life
We manufacture finished filter components, not only cut wire mesh.
